Description
Description

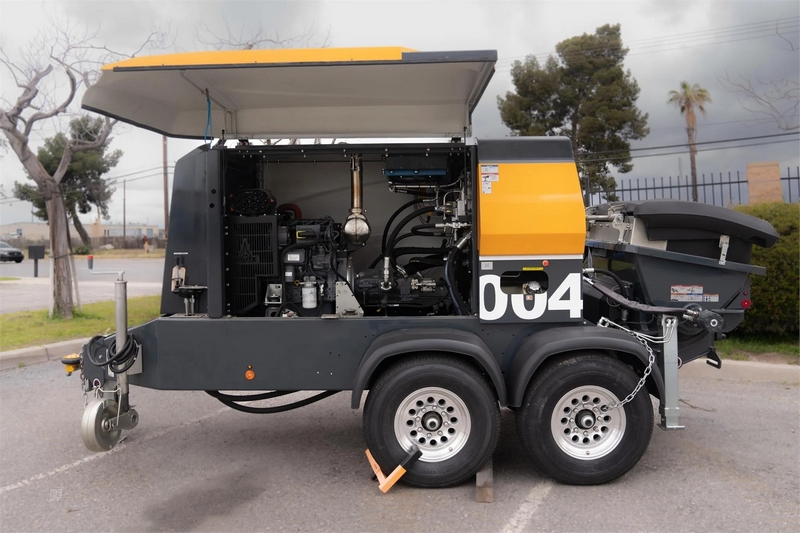

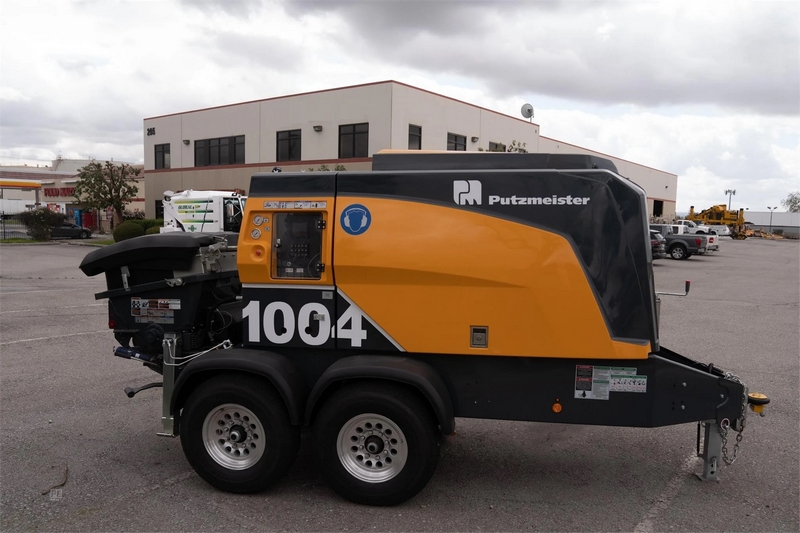

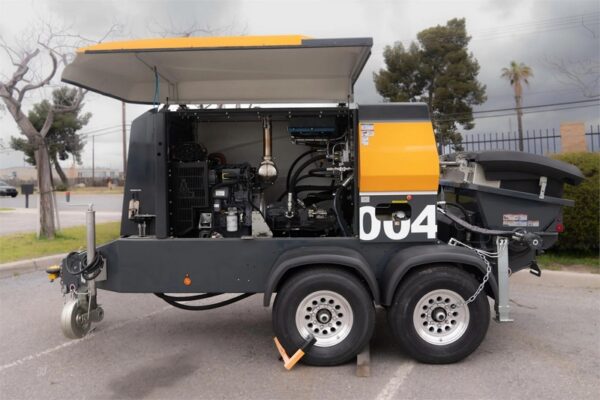

The NEW Putzmeister Thomkatt TK 1004 D4F is the compact concrete pump in the 1000 series, equipped with a Deutz diesel engine and the latest Ergonic ® 3 PS control. With the TK 1004 D4F, it is possible to deliver normal concrete with a grain size of up to 1.25″ (32 mm).
Output 43yd3/hr
Delivery Pressure 1160 psi
Max Agg Size 1.25”
Strokes 32

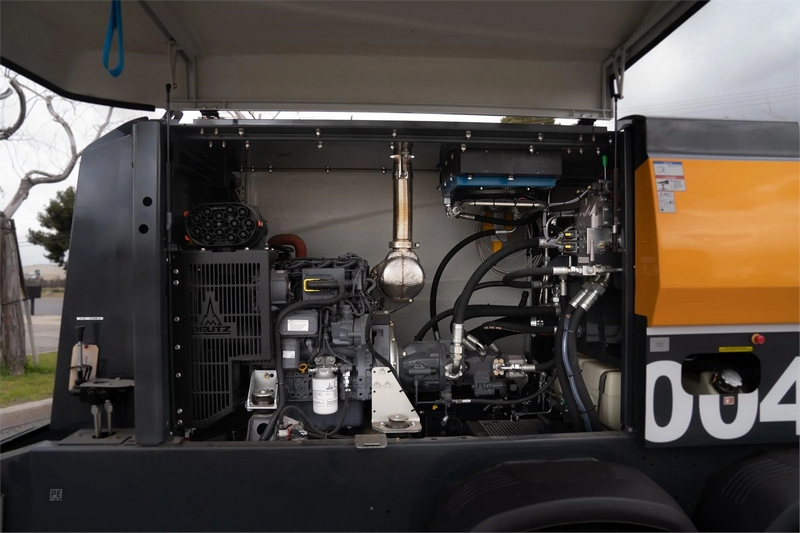

Engine Deutz TCD2.2 74hp
Material Cylinder Diameter – Stroke 5.9”/ 39.4”

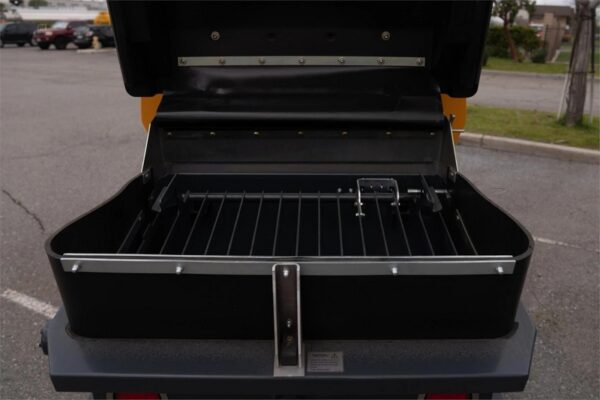

Hopper Capacity approx. 10.6 FT3
S-Tube S1512
Variable Volume Control

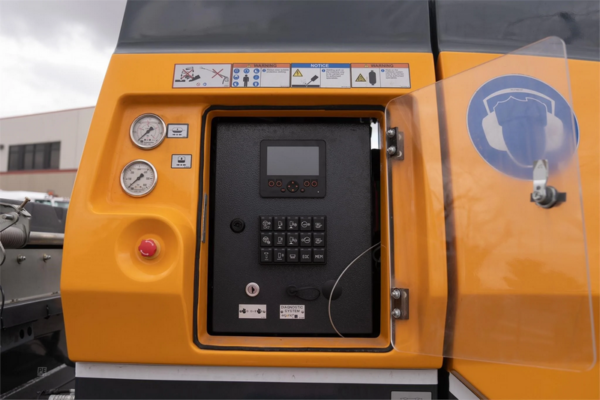

Wireless remote and plug in remote
Outlet Diameter 5”
Hydraulic Outriggers
L x W x H 189”x 68”x86.6”
Weight 6393 lbs.

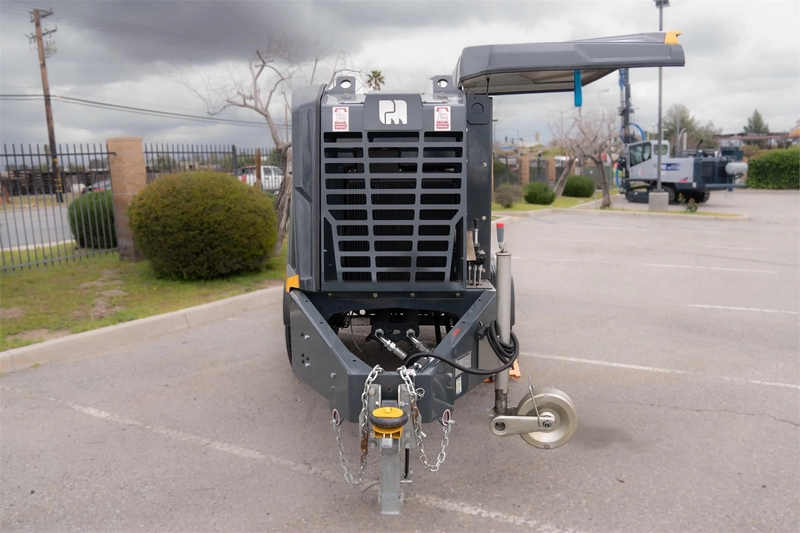

Tandem Trailer with Pintal hitch
Electric Brakes
We specialize in selling high-quality used construction machines that have undergone rigorous inspections to ensure their reliability.
Each machine is backed by a 1-year warranty for good operation, providing you with peace of mind. This warranty is honored at authorized service centers, ensuring professional maintenance and support.
Our commitment to quality and customer satisfaction sets us apart in the industry.
By choosing our used machines, you benefit from both affordability and reliability.
